Atum Logo Text

A breakthrough invention in the field of sustainable energy, Atum is an Integrated Solar Roofing System that serves all the functions of a traditional roof while generating energy for you.

We manufacture integrated solar panels with a cement base. It reduces thermal conductivity better than a traditional roof while enhancing the appearance of your roof.

Level Up With ATUM!

Click and drag across the house to see how an ATUM powered roof compares against a traditional solar

Atum Solar Roof Traditional Solar Roof
123

Integrated Solar Roofing System

Unlike other solar panels which need to be separately mounted upon a racking system and placed on the truss, Atum is both - the roof and the solar panel. It provides a sleek and simpler integrated solar roofing system that increases energy generation by 20%.

123

Regulated Temperatures

The cement base of Atum helps in reducing heat transfer and reduces the energy usage by 6% as compared to the traditional sloped concrete roof or an industrial Galvalume roofing.

123

Increased Efficiency

Atum provides more surface area for the panels which results in 20% more output than conventional solar panels. They have a lifespan of 25 years, making it the smarter choice.

123

Elegant Aesthetics

The integrated roof design of Atum ensures that your roof looks better than ever before. The frameless design gives an elegant finish to the roof.

Unlike other solar panels which need to be separately mounted upon a racking system and placed on the truss, Atum is both - the roof and the solar panel. It provides a sleek and simpler integrated solar roofing system that increases energy generation by 20%.

The cement base of Atum helps in reducing heat transfer and reduces the energy usage by 6% as compared to the traditional sloped concrete roof or an industrial Galvalume roofing.

Atum provides more surface area for the panels which results in 20% more output than conventional solar panels. They have a lifespan of 25 years, making it the smarter choice.

The integrated roof design of Atum ensures that your roof looks better than ever before. The frameless design gives an elegant finish to the roof.

Product Highlights

  • Solar Board with a density of 1300kg/cubic metre, thus increasing the lifespan
  • Increased efficiency due to thermal conductivity of 0.072 W/mtK
  • Thermal Insulation reduces the temperatures by 35-40%
  • Customisable sizes for larger orders
  • Partnerships with battery and inverter manufacturers to make the process faster and easier
  • It can be used on the building face to gain maximum surface area and increased efficiency
  • Recover your investment in just 2.5 years

Our Portfolio

Browse projects developed by ATUM

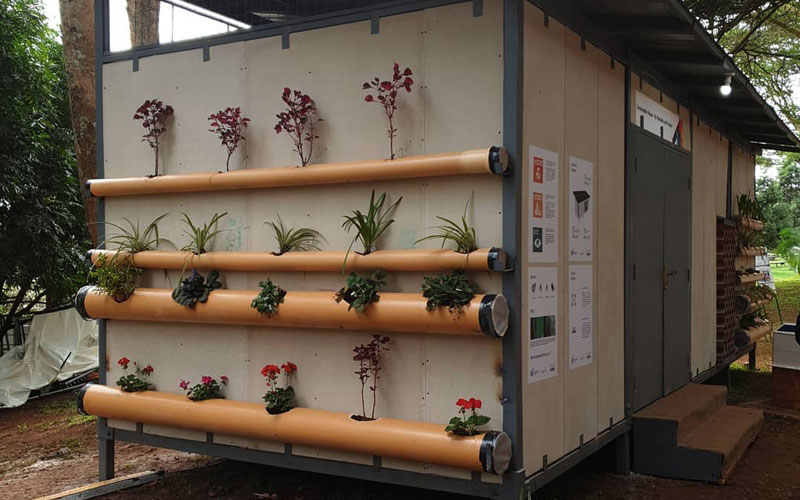

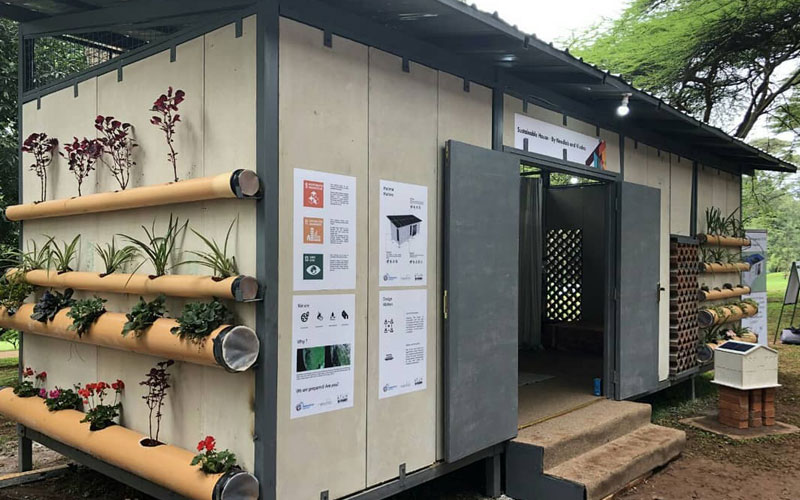

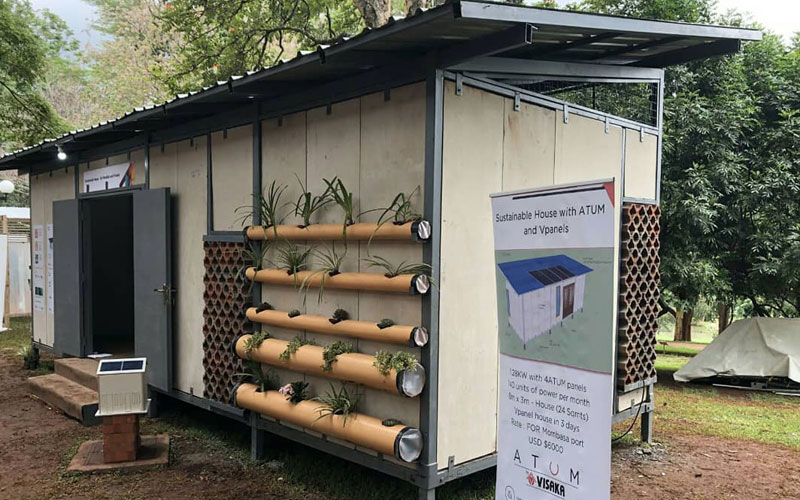

UN Habitat

Nairobi, Kenya, East Africa

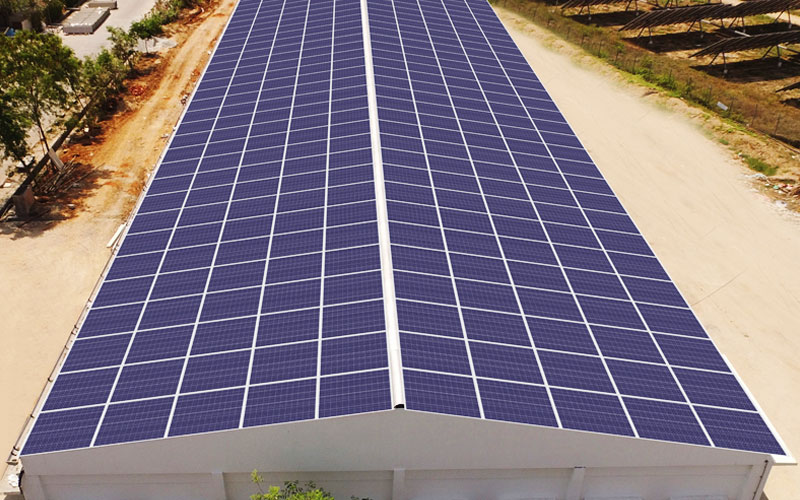

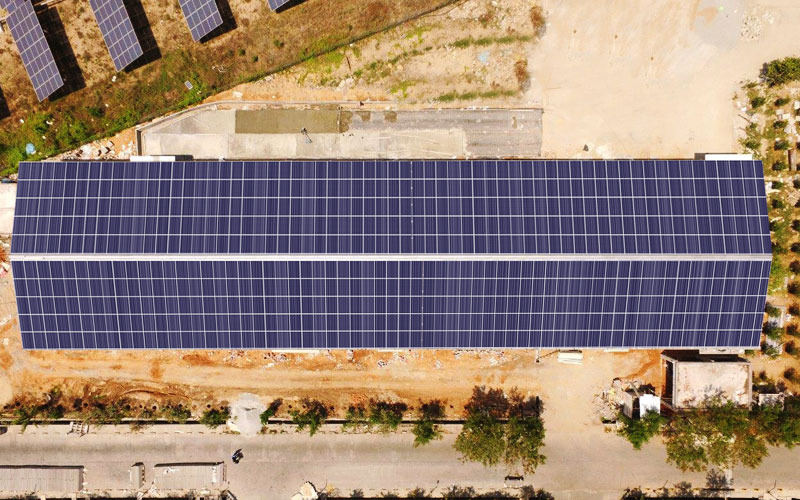

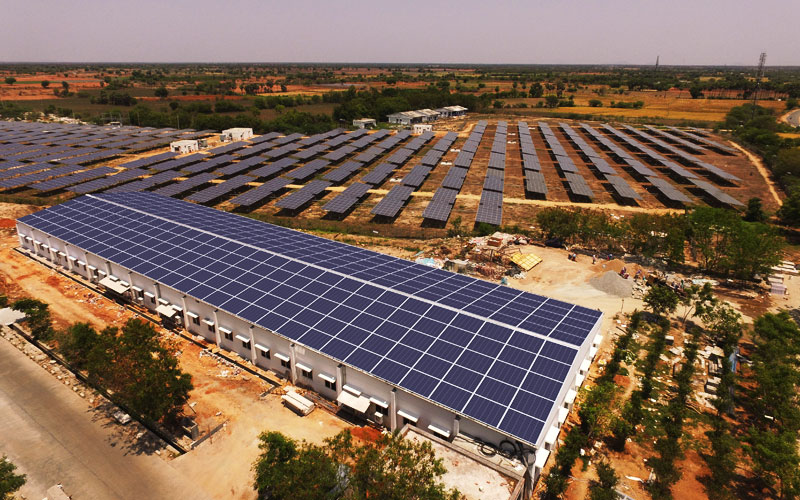

Atum Factory

Miryalaguda, Telangana, India

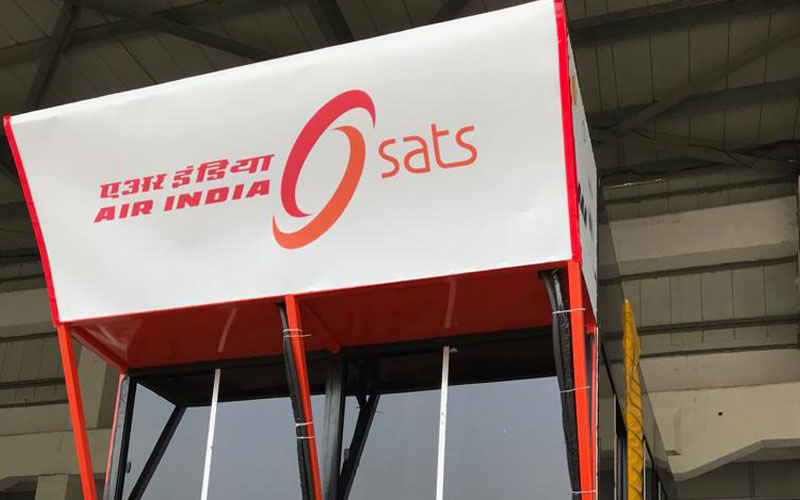

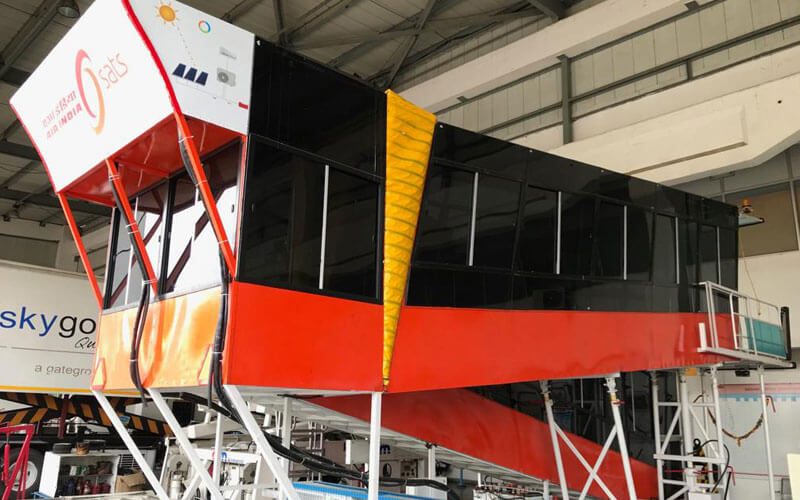

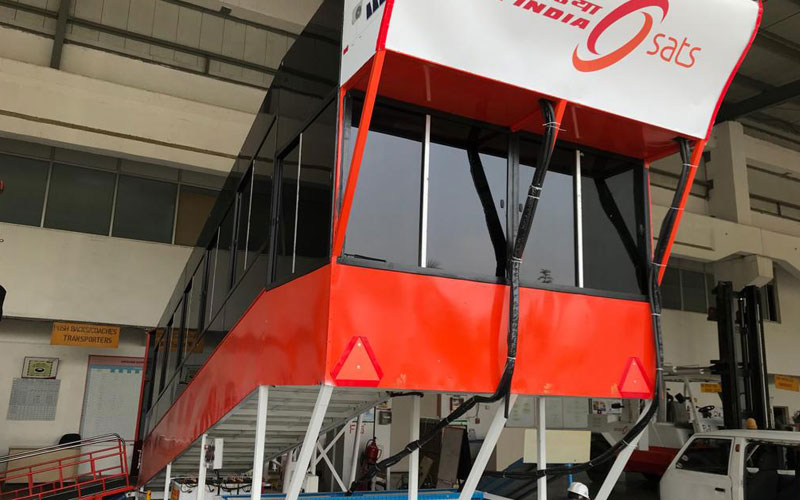

AirIndia Ramp

Hyderabad, Telangana, India

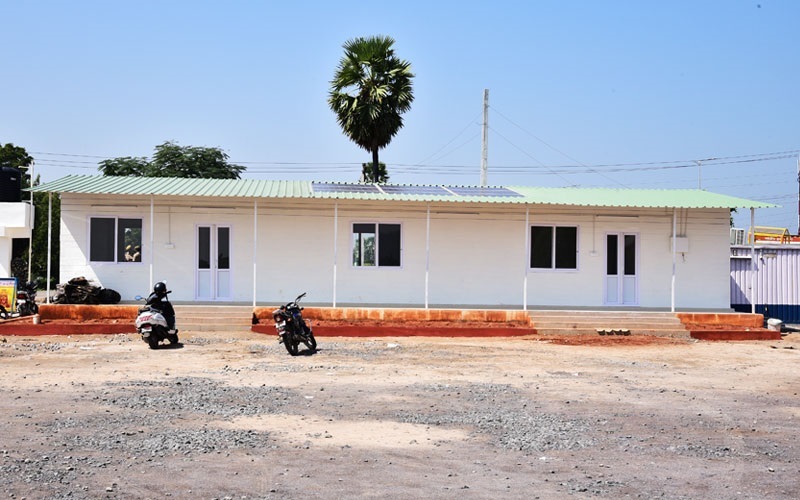

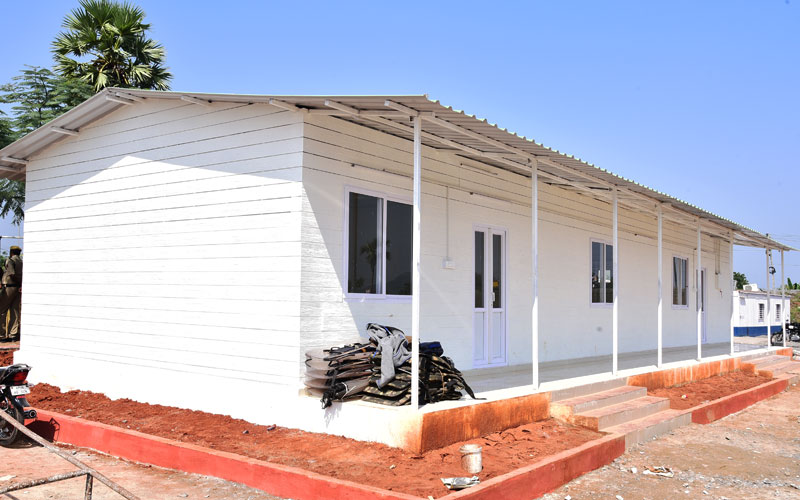

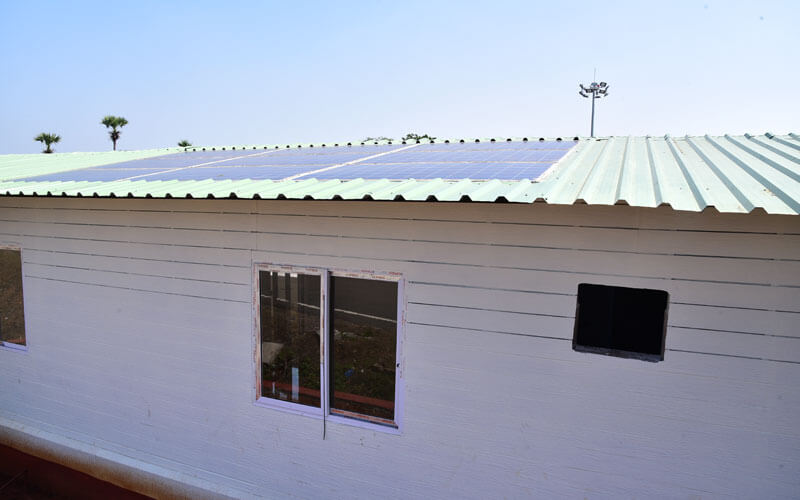

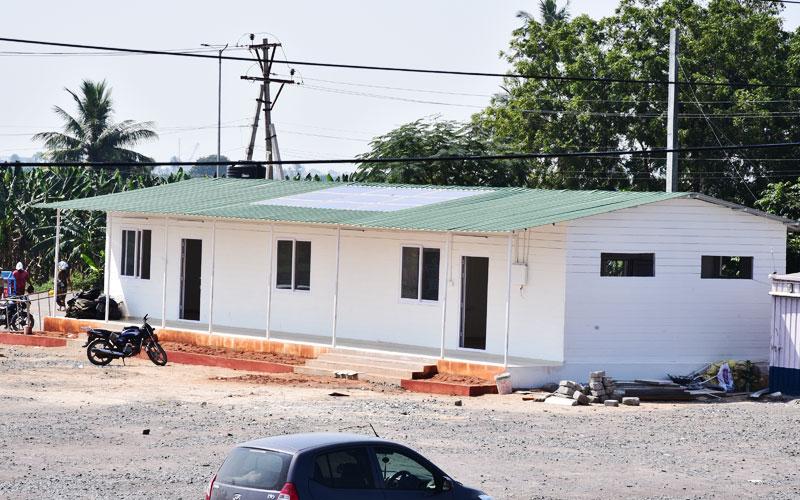

AP CM Camp Office

Vijayawada, Andhra Pradesh, India

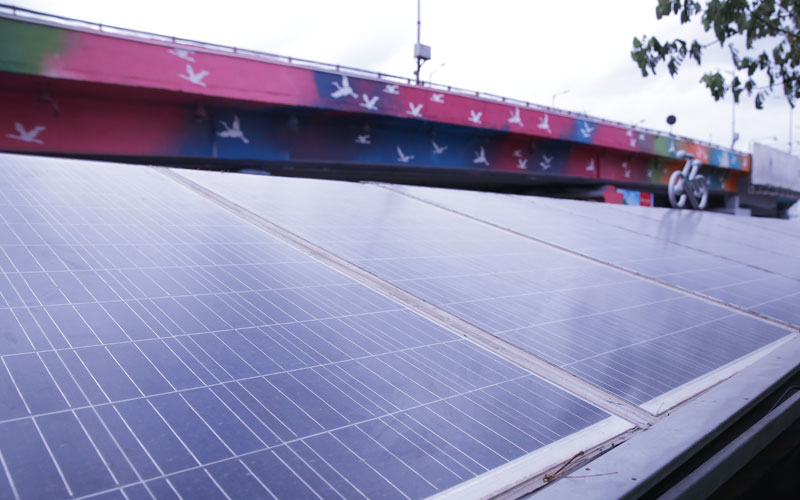

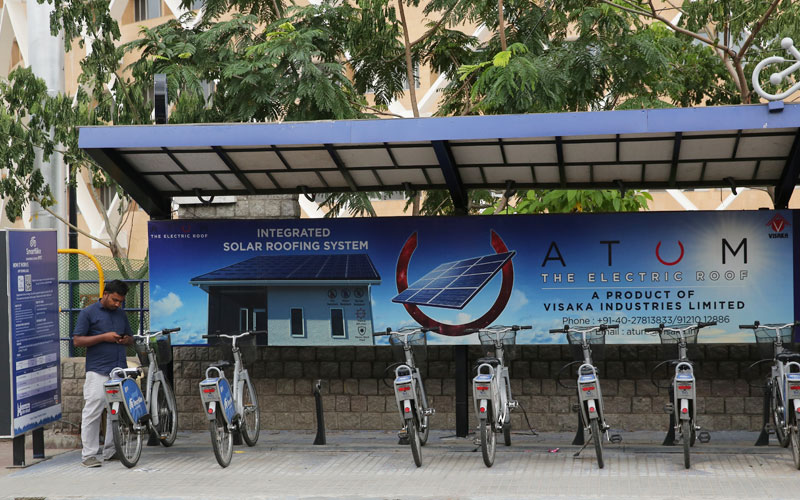

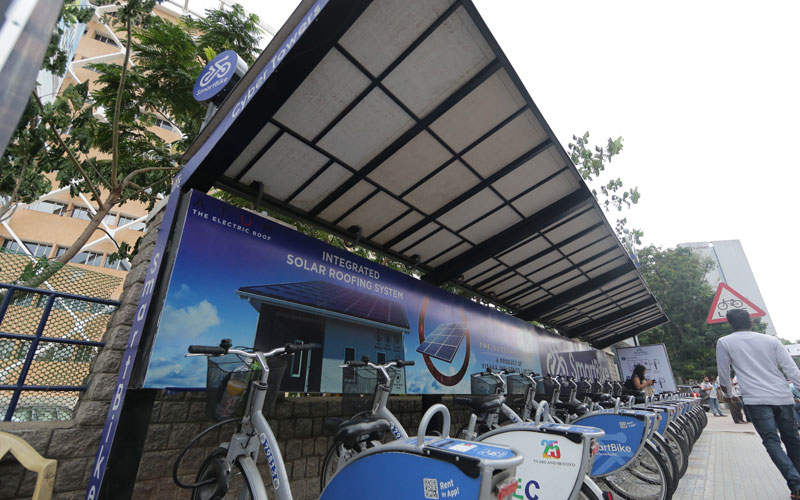

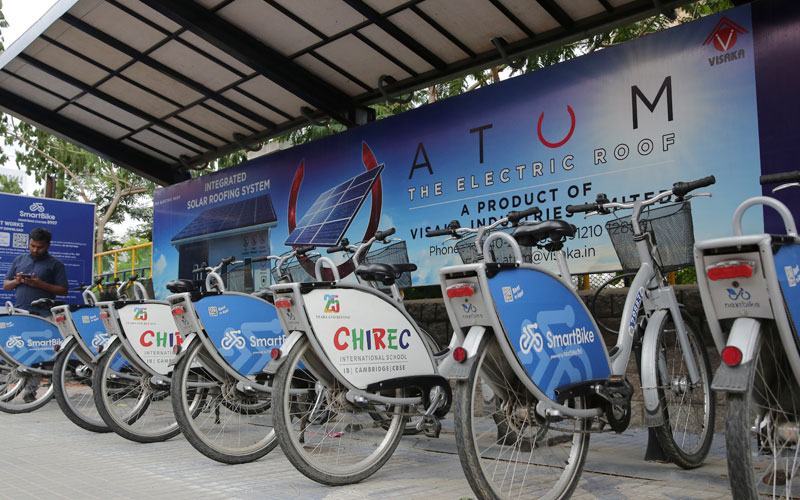

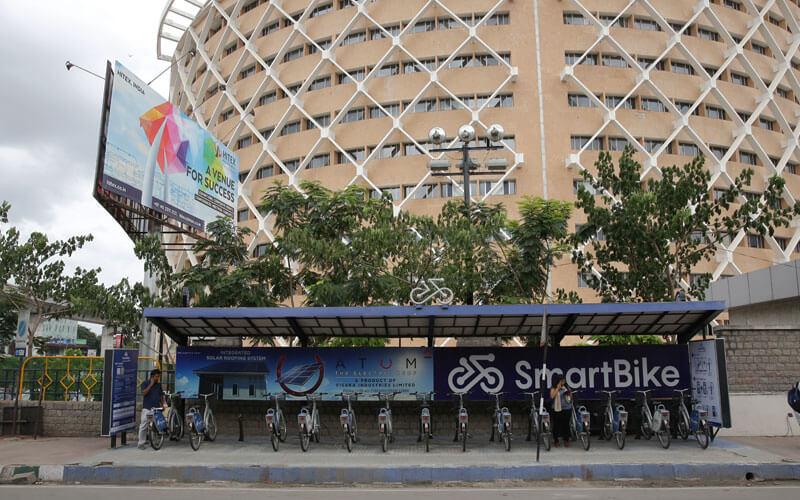

Cyber Towers Bustop

Hyderabad, Telangana, India

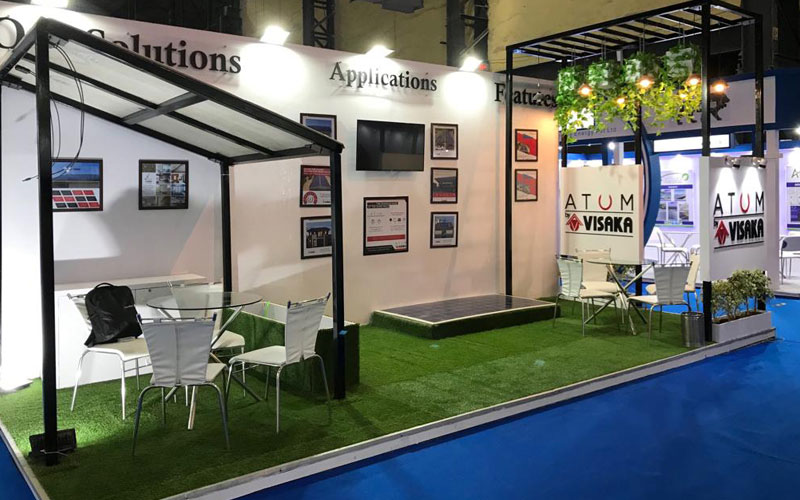

Intersolar Mumbai

Mumbai, Maharashtra, India

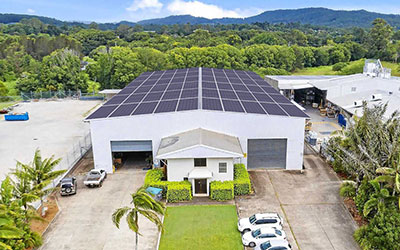

Jagityal Factory

Jagityal, Telangana, India

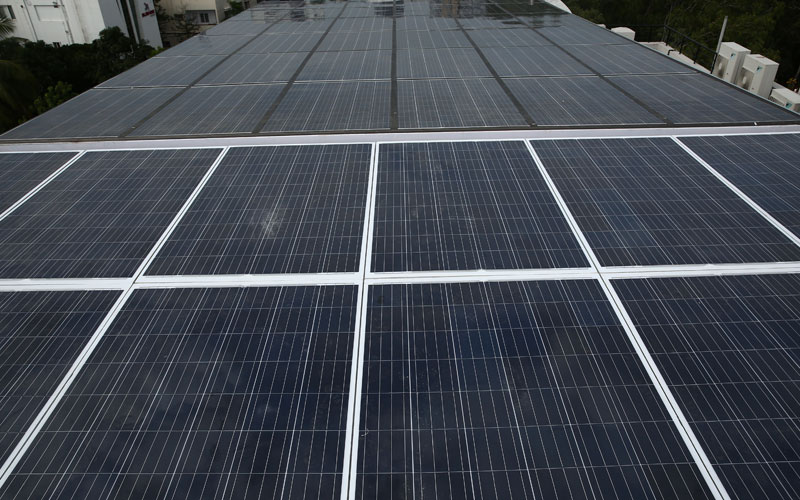

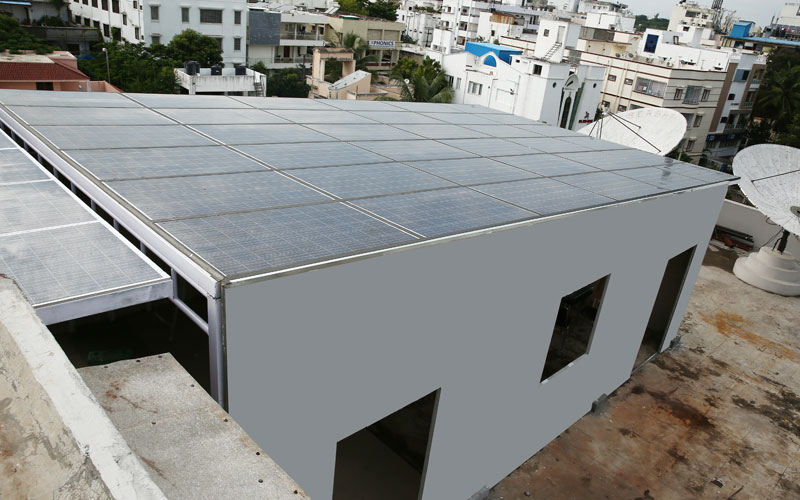

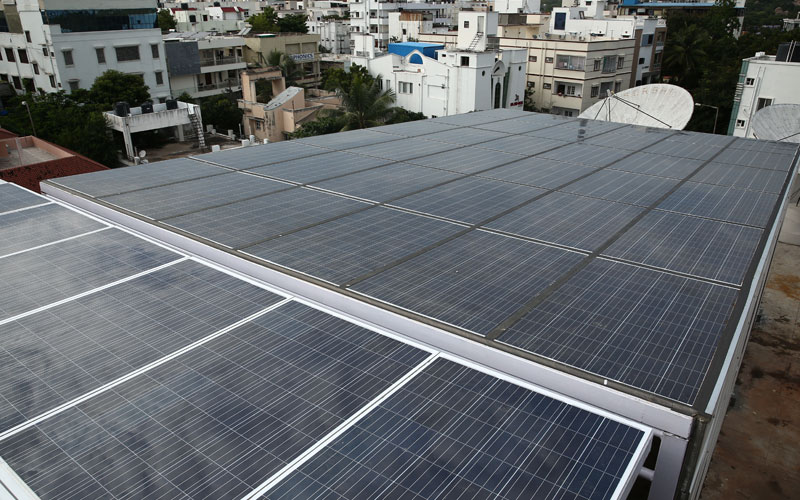

V6 News

Hyderabad, Telangana, India

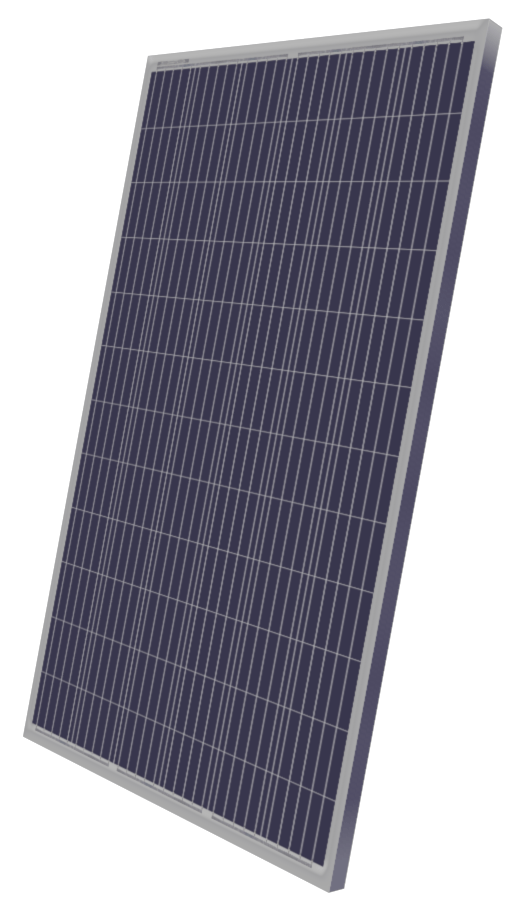

Technical Specifications

Technical details of ATUM panel

Module Type VIL-320P
Maximum Power -Pmpp(W) 320
Positive Power Tolerance 0~2.5%
Open Circuit Voltage -Voc(V) 46.18
Short Circuit Current -Isc(A) 9.06
Maximum Power Voltage -Vmpp(V) 37.2
Maximum Power Current -lmpp(A) 8.61
Module Efficiency Approx. 16%
Dimensions 1980 x 1010 x 14mm (Board Thickness)
Weight 44.0 Kg
Frame Frame Less
Cells Polycrystalline - 72 cells.
Junction Box Rated current ≥ 15A,IP ≥ 67,TUV&UL
Cable Length 1000mm,1x4mm
Connector MC4/compatible with MC 4
Voltage Temperature Coefficient -0.300±0.024%/°C
Current Temperature Coefficient 0.059±0.007%/°C
Power Temperature Coefficient -0.342±0.004%/°C
Maximum System Voltage(V) 1000
Maximum Over-current Protection Rating 15A
Series Fuse Rating(A) 15
Reverse Current Overload(A) 20
Temperature Range -40°Cto+85°C
Hail Max.diameter of 25mm with 23m/s impact speed
Maximum Capacity Snow 5400 Pa,wind 2400 Pa
Safety Application Class Class A
Safety Class In Accordance With IS 61140 Class ll
Fire Safety Class Class A
Recommended Maximum Series/parallel Module Configurations Max 21 in series

What makes ATUM different?

  • Compared to GV sheets, ATUM Solar Roof generates no noise and minimises the effects of heat and rain
  • No need for an insulation mat under the roof
  • No rust formation; product lasts for more than 25 years
  • Fire-resistant and Electric Shock Proof compared to GV sheets which are dangerous and can cause shock and electrocution
  • Non-hazardous material, unlike GV sheets which conduct radiations and may cause health hazards
